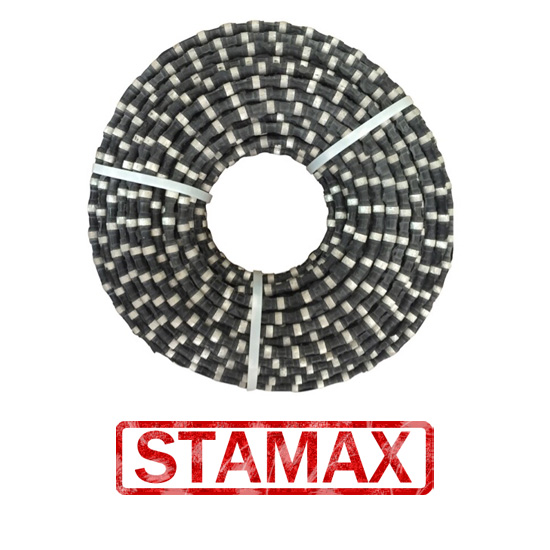

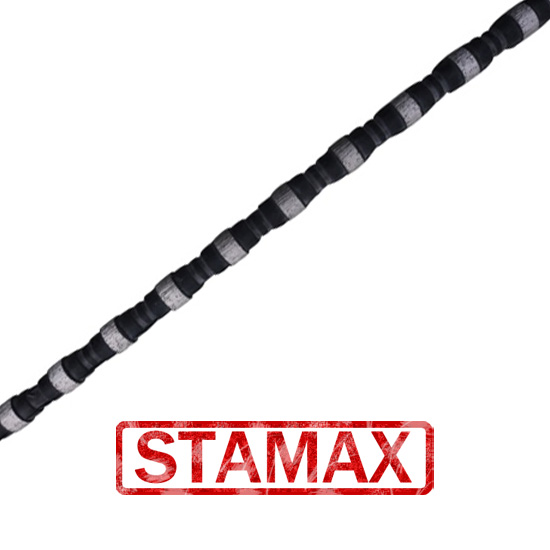

Rubber diamond wire saw for granite quarrying

Rubber diamond wire saw for granite quarrying Rubber diamond wire saw for granite quarrying Rubber diamond wire saw for granite quarrying Rubber diamond wire saw for granite quarrying

Product name:Rubber diamond wire saw for granite quarrying

Item:

Details:

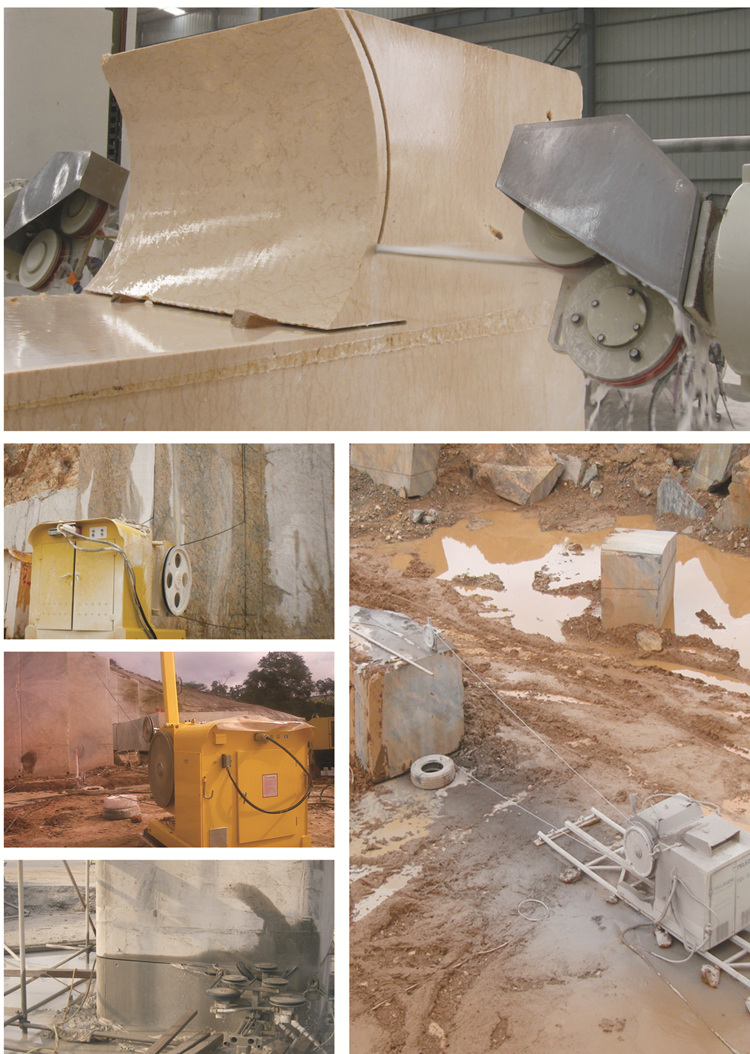

Be used for granite quarries and granite squaring.

Diameter

Model

Beads/m

Coat

Cutting materials

Line speed(m/s)

Efficiency

(m2/h)

Life time(m2/m)

Beads

Φ11

STX-G-Q-R110

40

Rubber

Soft

22 - 28

4 - 8

10 – 20

Sintered



Medium

20 - 24

2 - 5

7 – 15

Φ11.5

STX-G-Q-R115

Hard

18 - 22

1 - 3

5 - 8

Abrasive

26 - 30

4 - 8

8 - 15



Remark:

Other specifications are available as per request of clients.

Different types of wire beads specially for different materials are available.

Crude rubber coating diamond wire with advantages of good flexibility, good protection for internal steel cable, good safety and stability during cutting, is the best choice for quarrying use of hard materials like granite and sandstone etc.

Suggestions for stationary wire cutting machines:

1.The status of beads wear should be regularly inspected, it should be adjusted once unevenly beads wear happens.

2.The status of wear of joints and beads close to joints should be timely checked, and should be replaced timely.

3. Control the cable tension carefully, set it to 250-350KGS for Φ4.9mm steel cable.

4. Change the linear speed of wire according to materials under cutting, following parameters are for reference only:

Hard granite: 20-25m/s

Medium granite: 22-26m/s

Soft granite: 25-29m/s

Hard marble: 28-33m/s

Soft marble: 30-38m/s

5. The linear speed should be 2-3m/s less than normal cutting speed(standard mentioned above) during the sharpening of new wire saw.
