Diamond wire saw for concrete cutting

Diamond wire saw for concrete cutting

Product name:Diamond wire saw for concrete cutting

Item:

Details:

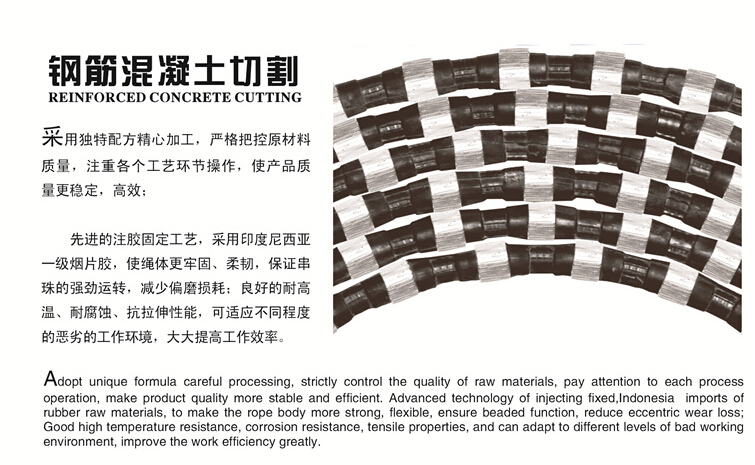

 Diamond wire saw for concrete

Diameter

Model

Beads m

Coat

Cutting materials

Line speed(m/s)

Efficiency

(m2/h)

Life time(m2/m)

Beads

Φ10.5



Φ11



Φ11.5

STX-C-RS105



STX-C-RS110



STX-C-RS115

40

Rubber

Spring

Normal

concrete

20 - 28

2 - 5

2 – 7

Sintered



Reinforcd concrete

18 - 25

0.8 – 2

1 –2.5

Steel

Metal

structure

16 - 22

0.5 - 1

0.5 – 1.2

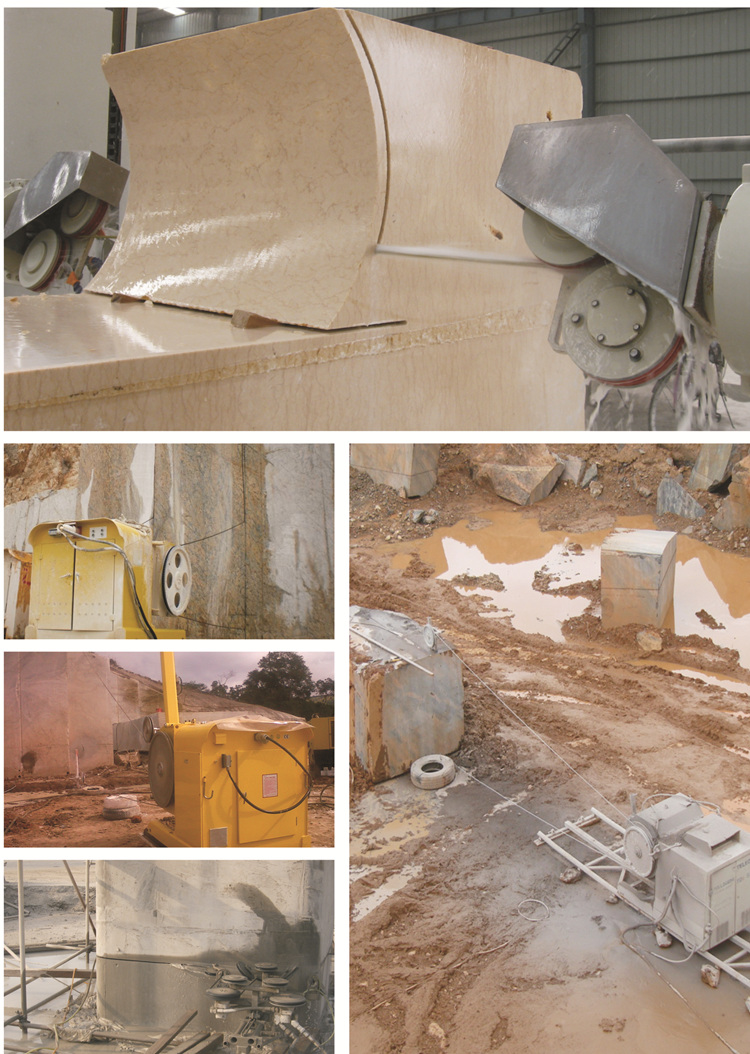

 Suggestions for stationary wire cutting machines:

1.The status of beads wear should be regularly inspected, it should be adjusted once unevenly beads wear happens.

2.The status of wear of joints and beads close to joints should be timely checked, and should be replaced timely.

3. Control the cable tension carefully, set it to 250-350KGS for Φ4.9mm steel cable.

4. Change the linear speed of wire according to materials under cutting, following parameters are for reference only:

Hard granite: 20-25m/s

Medium granite: 22-26m/s

Soft granite: 25-29m/s

Hard marble: 28-33m/s

Soft marble: 30-38m/s

5. The linear speed should be 2-3m/s less than normal cutting speed(standard mentioned above) during the sharpening of new wire saw.
