Diamond beads for wire saw

Diamond beads for wire saw

Product name:Diamond beads for wire saw

Item:

Details:

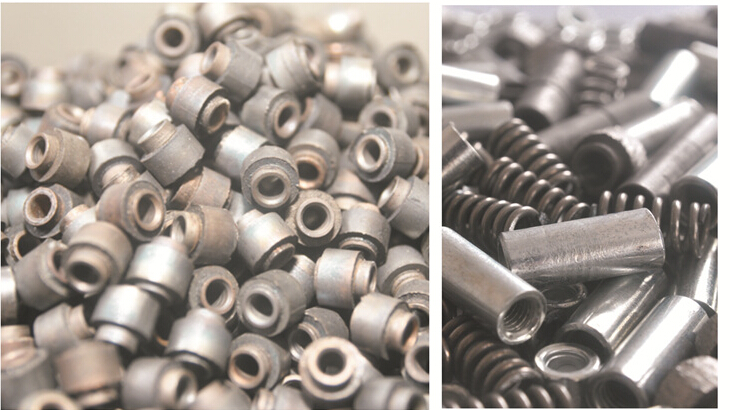

 Diamond wire beads

Diameter(mm)

Height of work layer(mm)

Length(mm)

Inside dia. (mm)

Bore dia. (mm)

beads

Φ7.2

6.6mm for granite

10

Φ5

As per request

Sintered

Φ8

6.6mm for granite

10

Φ5.5

As per request

Sintered

Φ9

6.2mm for marble

6.4mm for granite

10

Φ6.2

As per request

Sintered

Φ10.5

6.2mm for marble

6.4mm for granite

10.5

Φ7.5

As per request

Sintered

Φ11

6.2mm for marble

6.4mm for granite

11

Φ7.5

As per request

Sintered

Φ11.5

6.2mm for marble

6.4mm for granite

11

Φ8.3

As per request

Sintered

Any specifications are available according to customers’ requirement.

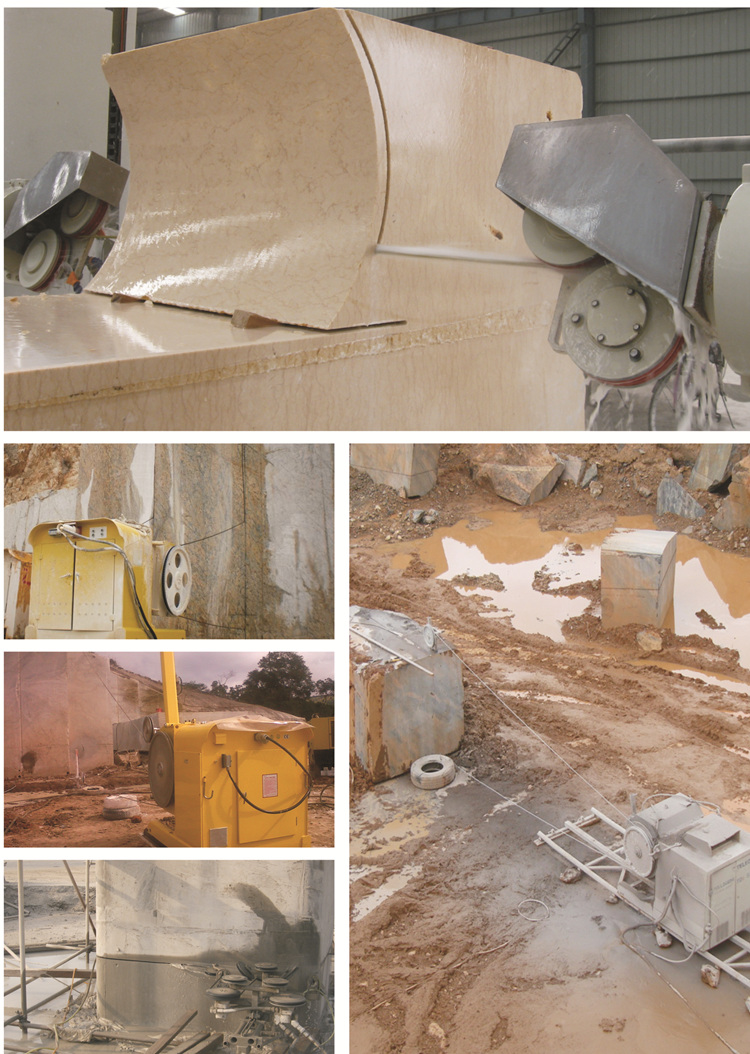

  Suggestions for stationary wire cutting machines:

1.The status of beads wear should be regularly inspected, it should be adjusted once unevenly beads wear happens.

2.The status of wear of joints and beads close to joints should be timely checked, and should be replaced timely.

3. Control the cable tension carefully, set it to 250-350KGS for Φ4.9mm steel cable.

4. Change the linear speed of wire according to materials under cutting, following parameters are for reference only:

Hard granite: 20-25m/s

Medium granite: 22-26m/s

Soft granite: 25-29m/s

Hard marble: 28-33m/s

Soft marble: 30-38m/s

5. The linear speed should be 2-3m/s less than normal cutting speed(standard mentioned above) during the sharpening of new wire saw.
