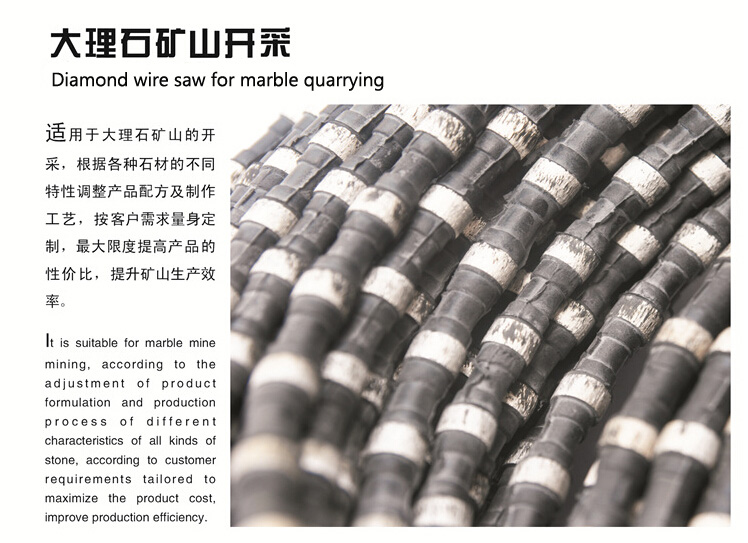

Diamond wire saw for marble quarrying

Diamond wire saw for marble quarries

Dry cutting

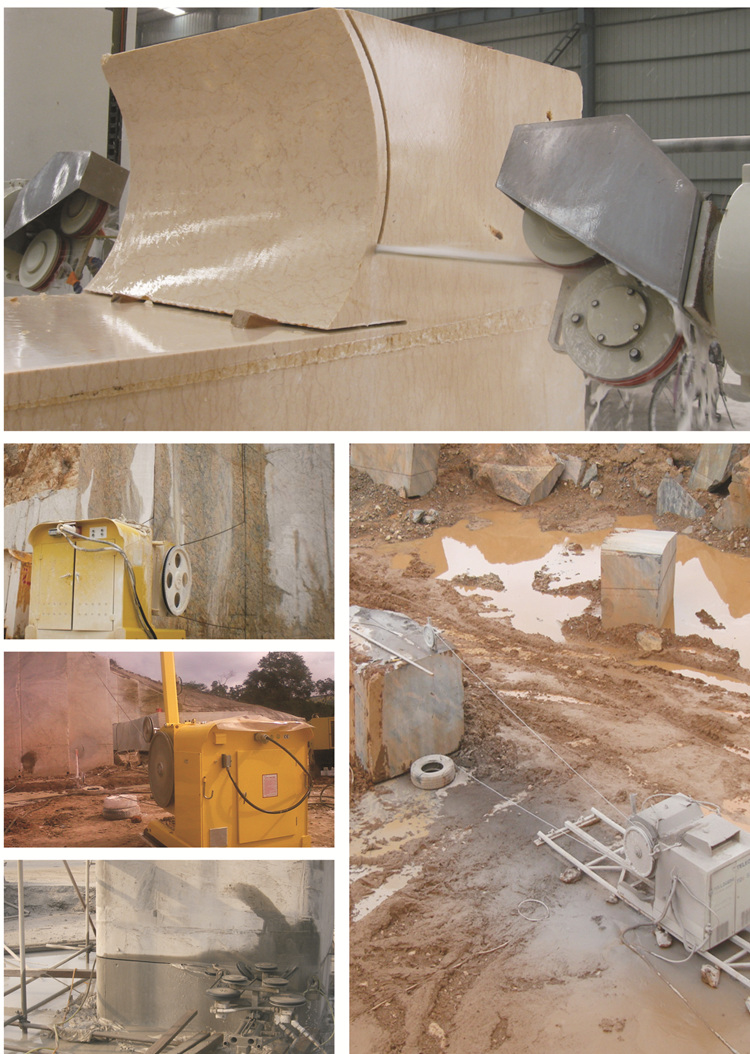

Mainly used for the marble quarrying with non-water and the shape of blocks, the wire saw specially designed for the use of dry cutting.

Suggestions for stationary wire cutting machines:

1.The status of beads wear should be regularly inspected, it should be adjusted once unevenly beads wear happens.

2.The status of wear of joints and beads close to joints should be timely checked, and should be replaced timely.

3. Control the cable tension carefully, set it to 250-350KGS for Φ4.9mm steel cable.

4. Change the linear speed of wire according to materials under cutting, following parameters are for reference only:

Hard granite: 20-25m/s

Medium granite: 22-26m/s

Soft granite: 25-29m/s

Hard marble: 28-33m/s

Soft marble: 30-38m/s

5. The linear speed should be 2-3m/s less than normal cutting speed(standard mentioned above) during the sharpening of new wire saw.
