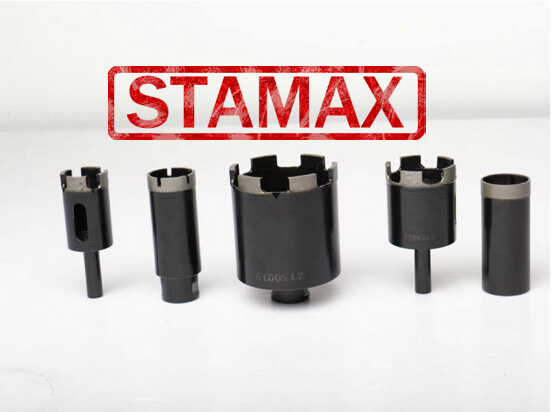

DIAMOND DRILLING TOOLS
CHARACTERISTICS OF PRODUCTS
1.High efficiency,no-chipping,long life.
2.Selectable adaptor sizes: Dia6/8/10mm shank, M14 thread, 5/8”-11 thread or Gas 1/2” etc.
|
Product name
|
Dimension(mm)
|
Usable Length(mm)
|
Suggested
R.P.M
|
|
Plane Bits
|
6.0-6.5
|
40
|
4500
|
|
Plane Bits
|
8.0-9.0
|
40
|
4300
|
|
Plane Bits
|
10
|
40
|
4100
|
|
Plane Bits
|
12-16
|
40
|
3500-4000
|
|
Segment Bits
|
18
|
40-100
|
3500-4000
|
|
Segment Bits
|
19-32
|
40-100
|
3000-3500
|
|
Segment Bits
|
35-50
|
40-100
|
2500-2800
|
|
Segment Bits
|
51-100
|
40-100
|
1500-2500
|
|
Segment Bits
|
100-150
|
40-100
|
1500
|
|
Crown Bits
|
10-20
|
47
|
3500-4300
|
|
Crown Bits
|
20-35
|
47-100
|
3000-3500
|
|
Crown Bits
|
35-50
|
47-100
|
2500-2800
|
|
Crown Bits
|
50-60
|
47-100
|
2000-2500
|

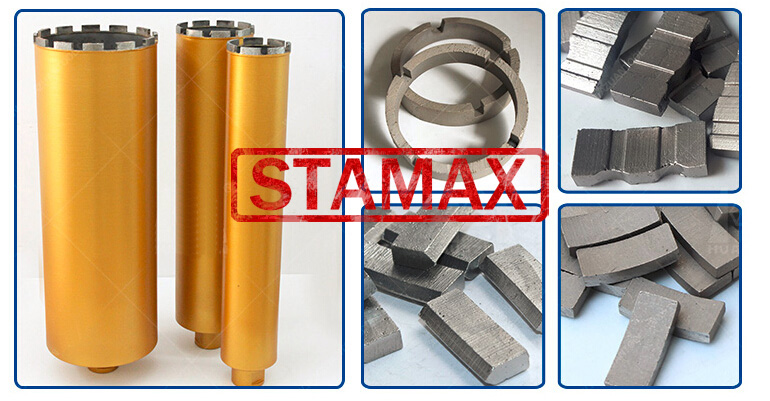

CORE DRILL BITS
CHARACTERISTICS OF PRODUCTS
1.High effciency, long life and no breaking of segments.
2.Sizes of adaptor for threaded bit:M14,M16, G1/2",5/8"-11.
3.Applicable for drilling of brick wall,concrete, concrete with steel.
|
Type
|
Code
|
Description
(mm)
|
Spec
(mm)
|
Tooth
(Entries)
|
Usable
Length(mm)
|
Suggested
R.P.M
|
Feed Speed
(mm/min)
|
|
Core Drill Bit
|
CDB
|
19-22
|
10*3*10
|
3
|
40
|
3000-3500
|
70-90
|
|
Core Drill Bit
|
CDB
|
25
|
10*3*10
|
3
|
40
|
3000-3500
|
70-90
|
|
Core Drill Bit
|
CDB
|
30-32
|
10*3*10
|
3
|
40
|
3000-3500
|
70-90
|
|
Core Drill Bit
|
CDB
|
35-40
|
10*3*10
|
3
|
40
|
2000-2800
|
60-80
|
|
Core Drill Bit
|
CDB
|
45-50
|
10*3*10
|
3
|
40
|
2000-2800
|
50-60
|
|
Core Drill Bit
|
CDB
|
55
|
10*3*10
|
3
|
40
|
1500-2000
|
40-60
|
|
Core Drill Bit
|
CDB
|
60
|
10*3*10
|
3
|
40
|
1500-2000
|
40-60
|
|
Core Drill Bit
|
CDB
|
65
|
10*3*10
|
3
|
40
|
1500-2000
|
40-60
|
|
Core Drill Bit
|
CDB
|
70
|
10*3*10
|
3
|
40
|
1500-2000
|
40-60
|
|
Core Drill Bit
|
CDB
|
75-85
|
10*3*10
|
3
|
40
|
1500-2000
|
40-60
|
|
Core Drill Bit
|
CDB
|
90
|
10*3*10
|
3
|
40
|
1500-2000
|
40-60
|
|
Core Drill Bit
|
CDB
|
95-100
|
10*3*10
|
3
|
40
|
1000-1500
|
05-45
|
|
Core Drill Bit
|
CDB
|
125
|
10*3*10
|
3
|
40
|
1000-1500
|
25-45
|
|
Core Drill Bit
|
CDB
|
150
|
10*3*10
|
3
|
40
|
1000-1500
|
25-45
|
diamond core drill bit-diamond drilling tools

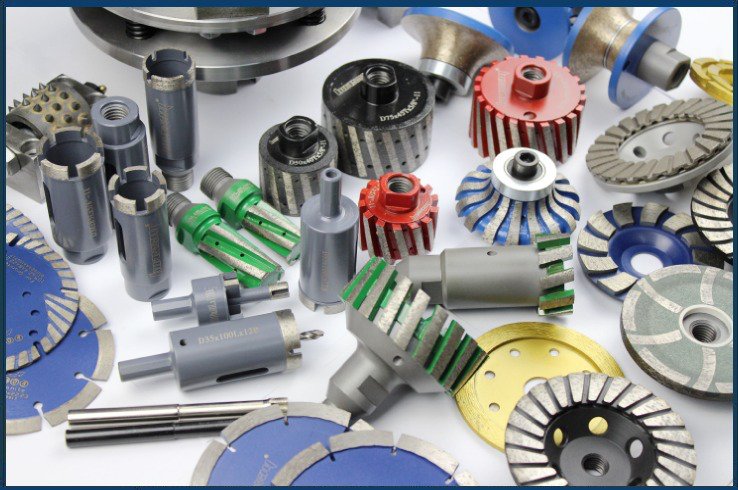

We are leading manufacturer of various drill bits, diamand bit, impregnated diamand bit, surface diamand bit, etc.
Our impregnated bits are manufactured to give optimum penetration rates and bit life, which is required to keep the cost of diamond drilling to a minimum.
The optimum diamond size, concentration and matrix type are dependent on the hardness and abrasiveness of the formation to be drilled. When order, please read.
